High-Efficiency Two-Stage Screw Air Compressor for Heavy Industry

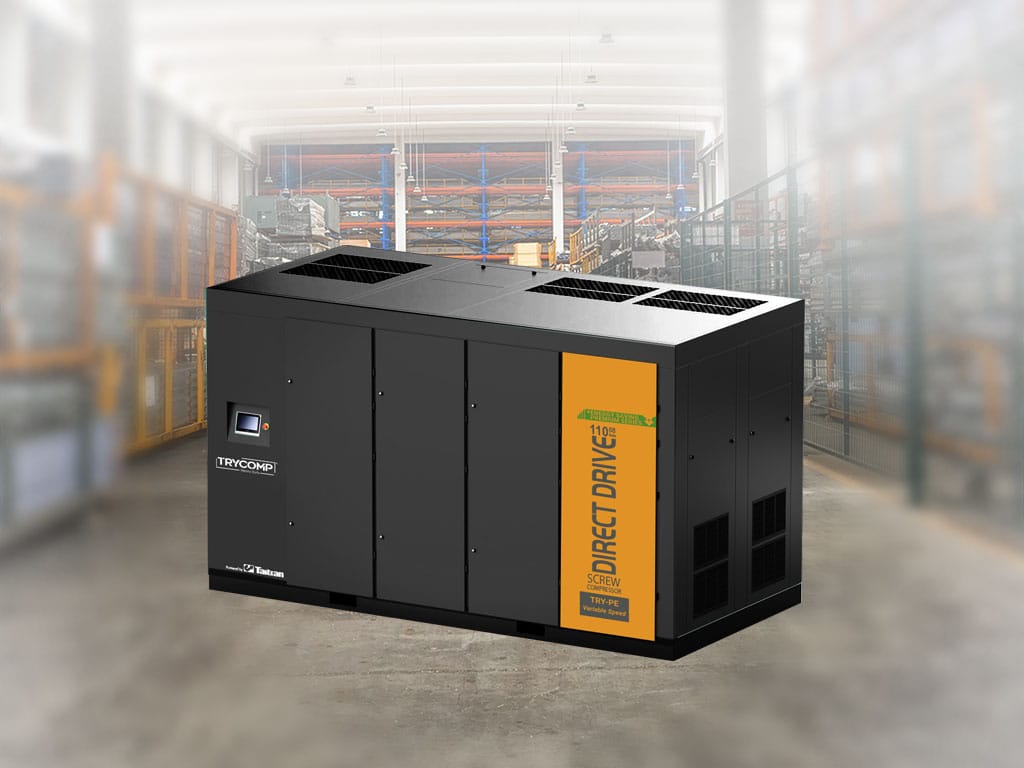

The TRY110TA 110 kW screw air compressor is a high-performance compressed air solution developed by TRYCOMP for industrial facilities that require continuous operation and high air flow. Designed with two-stage screw compression technology, this compressor delivers superior energy efficiency, reduced operating temperature, and long-term reliability compared to conventional single-stage systems.
By compressing air in two separate stages, the TRY110TA minimizes internal pressure losses and mechanical stress, resulting in stable performance even under heavy load conditions. This makes the system ideal for production environments where compressed air quality and consistency are critical.
IE5 PM Motor and VSD Technology for Energy Savings
The TRY110TA VSD screw air compressor is equipped with an IE5 efficiency class Permanent Magnet (PM) motor combined with an advanced Variable Speed Drive (VSD) inverter system. This configuration allows the compressor to automatically adjust motor speed according to real-time air demand.
As a result, energy consumption is significantly reduced during partial load operation, leading to lower electricity costs and improved overall system efficiency. Compared to fixed-speed compressors, the TRY110TA provides measurable energy savings while maintaining constant pressure levels across the compressed air network.
Compact Vertical Design and Reliable Cooling System
The vertical airend layout of the TRY110TA optimizes airflow inside the cabinet while reducing installation footprint. This compact design is especially advantageous in high-power compressor rooms where space efficiency is important.
An air-cooled system with a centrifugal cooling fan ensures stable temperature control during continuous operation. Even in demanding industrial environments, the compressor maintains reliable thermal performance, extending component life and minimizing downtime.
Industrial Applications of the TRY110TA Screw Air Compressor
The TRY110TA 110 kW two-stage screw air compressor is suitable for a wide range of heavy-duty industrial applications, including:
- Automotive manufacturing plants
- Metal processing and CNC machining
- Foundries and casting facilities
- Plastic injection molding
- Central compressed air systems
- Continuous production lines with high air demand
Its robust construction and advanced drive technology make it a dependable compressed air source for critical processes.
Key Technical Advantages
- Two-stage screw air compressor design for higher efficiency
- IE5 Permanent Magnet motor for reduced energy consumption
- VSD inverter control for precise pressure regulation
- Vertical airend configuration for space saving
- IP55 motor protection for harsh industrial conditions
- Air-cooled centrifugal fan for continuous heavy-duty operation
- Designed for long service intervals and low maintenance
Technical Specifications
Motor Power: 110 kW / 150 HP
Motor Type: Permanent Magnet (PM) with VSD
Energy Efficiency Class: IE5
Compression Type: Two-Stage Screw
Working Pressure: 8 bar
Air Delivery: 23.0 m³/min
Cooling Method: Air-cooled with centrifugal fan
Motor Protection Class: IP55
Power Supply: 380 V / 50 Hz / 3 Phase
Noise Level: ≤ 85 dB(A)
Weight: 2750 kg
Why Choose the TRY110TA Two-Stage Screw Air Compressor?
The TRY110TA screw air compressor combines advanced two-stage compression, IE5 PM motor efficiency, and intelligent VSD control to deliver a reliable and cost-effective compressed air solution. Its energy-optimized design reduces operational expenses while ensuring consistent air supply for demanding industrial processes.
For facilities seeking long-term efficiency, stability, and professional-grade performance, the TRY110TA represents a modern and future-proof compressed air investment.
