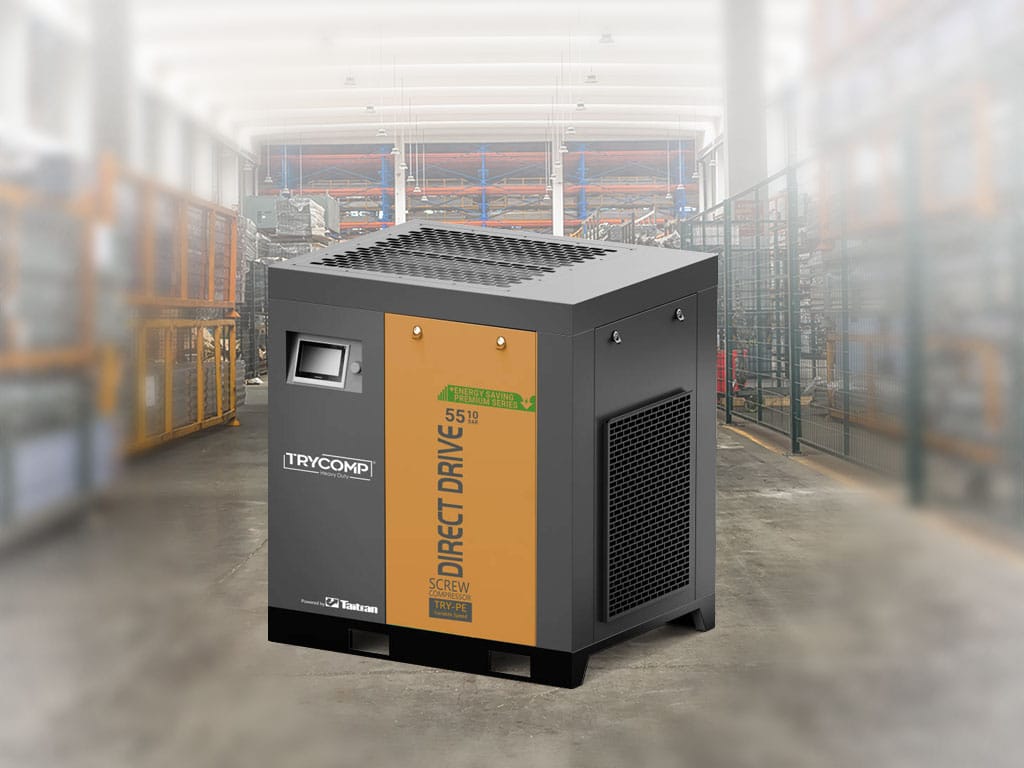

TRYCOMP TRY55TB – 55 kW High-Efficiency PM Screw Air Compressor

Energy-Saving IE5 PM Motor with Direct Coupled Drive and Inverter Control

Bu TRYCOMP TRY55TB screw air compressor is a next-generation solution for industries requiring high-capacity and continuous air supply. Powered by a 55 kW Permanent Magnet (PM) motor in IE5 efficiency class, this compressor combines performance, efficiency, and reliability into a compact and robust design.

Thanks to its direct-coupled integrated drive system, the TRY55TB eliminates belt and pulley losses, ensuring smooth operation and minimal maintenance. The system is controlled via an Inovance® inverter and advanced electronic panel, enabling variable speed control (VSD). This smart functionality allows the motor speed to adapt to real-time air demand, ensuring stable pressure, soft start, and up to 30% energy savings compared to fixed-speed systems.

Teknik Özellikler

• Motor Power: 55 kW / 75 HP
• Motor Speed: 3000 rpm
• Working Pressure: 8–10 bar
• Air Flow (FAD): 9.9 m³/min
• Motor Type: IE5 Permanent Magnet (PM)
• Cooling Method: Air-cooled axial fan
• Control System: Inovance® inverter + smart digital panel
• Protection Class: IP55
• Gürültü Seviyesi: ≤80 dB(A)
• Voltage Supply: 380V / 50Hz / 3 Phase
• Weight: 940 kg
• Dimensions: 1780 × 1300 × 1700 mm

Key Advantages of TRY55TB Screw Compressor

Direct Coupled Drive

No belts or pulleys – reduced wear and energy loss.

IE5 PM Motor Technology

Ultra-efficient operation with lower power consumption and higher torque at lower speeds.

Variable Speed Control (VSD)

Automatically adapts motor speed to match air demand – ensuring stability and efficiency.

Intelligent Monitoring

The digital control panel displays all operating parameters in real-time for easy management.

Built for Harsh Conditions

Thanks to its IP55 motor protection, TRY55TB is dust- and moisture-resistant, making it ideal for industrial environments.

Sessiz Çalışma

With a sound level of just ≤80 dB(A), this compressor offers a smooth and low-noise working environment, even at full load.

Ideal for Continuous-Duty Industrial Applications

The TRY55TB is the perfect choice for:

• Automotive manufacturing
• Metalworking lines
• Heavy-duty industrial facilities
• Any production process with uninterrupted air demand

Its combination of high air flow, smart controlve energy savings makes it a valuable asset for long-term industrial use.
